Depth Camera D435f

The Intel® RealSense™ Depth Camera D435f features our widest field of view global shutter camera with an IR pass filter over the depth lenses.

Based on the D435 camera, the peripheral dimensions are 90 mm (X) x 25.8 mm (Y) x 25 mm (Z).

There are various benefits to adding an IR pass filter, including:

• The IR pass filter increases the relative strength of the textured IR projector pattern. This enhances the quality of the depth noise and performance range in many robotic environments.
• The IR pass filter improves the stereo camera’s depth quality in scenes with repetitive vertical patterns, such as poles in airport, vertical blinds, pipes in ceiling, floor drains or small floor tiles.

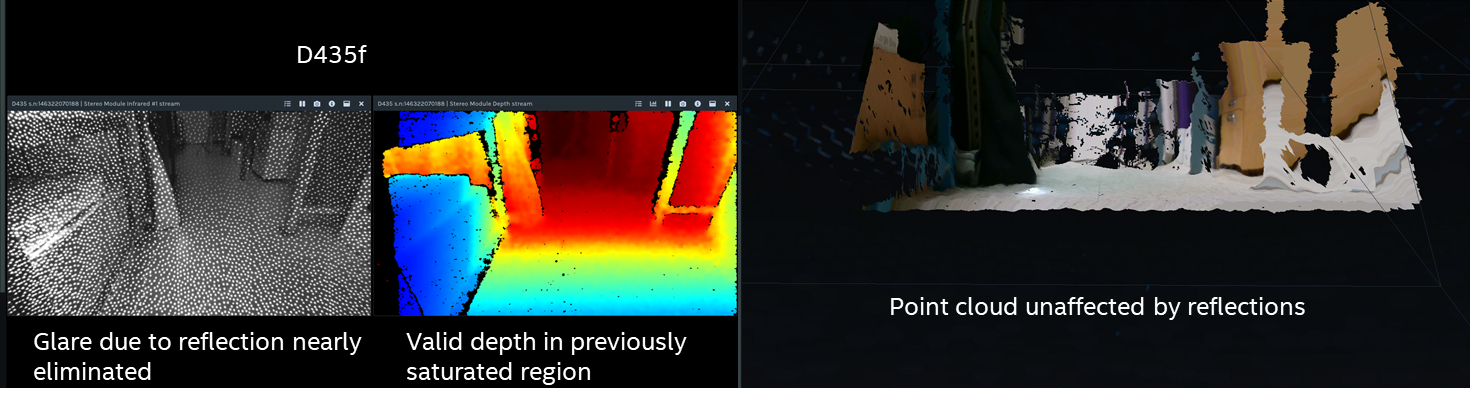

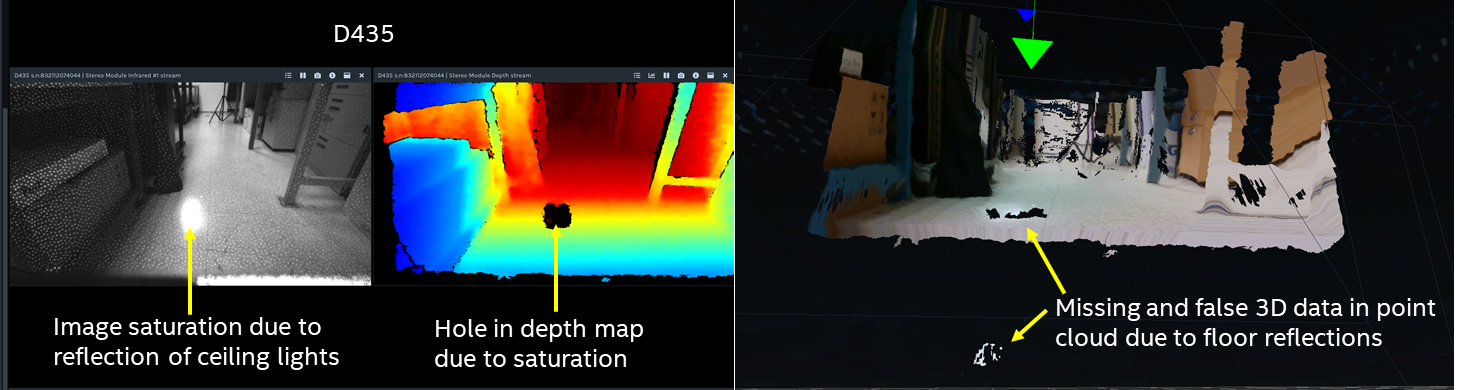

• The IR pass filter mitigates visible reflections such as overhead lights reflected by shiny floors or tables.
• The IR pass filter increases the range performance in indoor no-texture environment such as white-walls.

For further details please refer to Optical Filters for Intel® RealSense™ Depth Cameras D400 and mitigate-repetitive-pattern-effect-stereo-depth-cameras

Most of the Intel® RealSense™ Depth Camera D400 family have an All-pass filter. There are trade-offs between using an IR-pass to an All-pass filter. The All-pass filter advantages include:

• Depth noise on indoor textured surfaces is typically better with visible light included.
• Better range for textured walls and objects with ambient visible light.
• For IR-only, the indoor range is directly limited by the power of the laser projector – much like trying to illuminate a room in the dark with only the flashlight from an iPhone.
• IR-only may lead to lower XY resolution and edge quality. For IR-only, you primarily see depth around the projected spots. So if a camera projects 5000 spots, both X-Y and the depth resolution may be reduced.
• The total amount of light seen by the sensor is reduced when using IR-only filter, so the exposure time is generally increased. This can impact motion sensitivity and frame rate.
• The indoor “dynamic range-of-range” is reduced by using an IR-only filter. The nearest spots will be saturated and farthest spots will not be visible. Many are familiar with this from experience with using a flash to take a picture in a dark room. Near objects are too bright and far objects are too dark.
• IR light is poorly reflected from many objects so if we only see IR we may see many more “holes” in the depth image. For example, hair, carpets, or jeans may be more difficult to see.

The D435f is an enhanced IR depth camera targeting the market of autonomous mobile robots. Any application that works in the scenes described above, such as scenes with overhead lights reflected by shiny floors or tables or non-texture scenes such as white walls, would see improvement with the D435f. Robots that suffer from lower depth quality due to repetitive vertical patterns will also benefit from this camera.

No. The Intel® RealSense™ Depth Camera D435f uses the existing D430 module. The filter is directly applied over the external surface of the glass cover window.

Yes, you can apply a filter to an Intel® RealSense™ Depth Camera D435 or D435i. The D435f camera’s filter is 750nm near-infrared filter (CLAREX® NIR-75N). Please check the datasheet for further information.

The box product has a peripheral, a cable and get started guide.

Yes to both. The Intel® RealSense™ Depth Camera D435f comes in 30 pack bulk version with only the peripheral – no cable or retail box.
